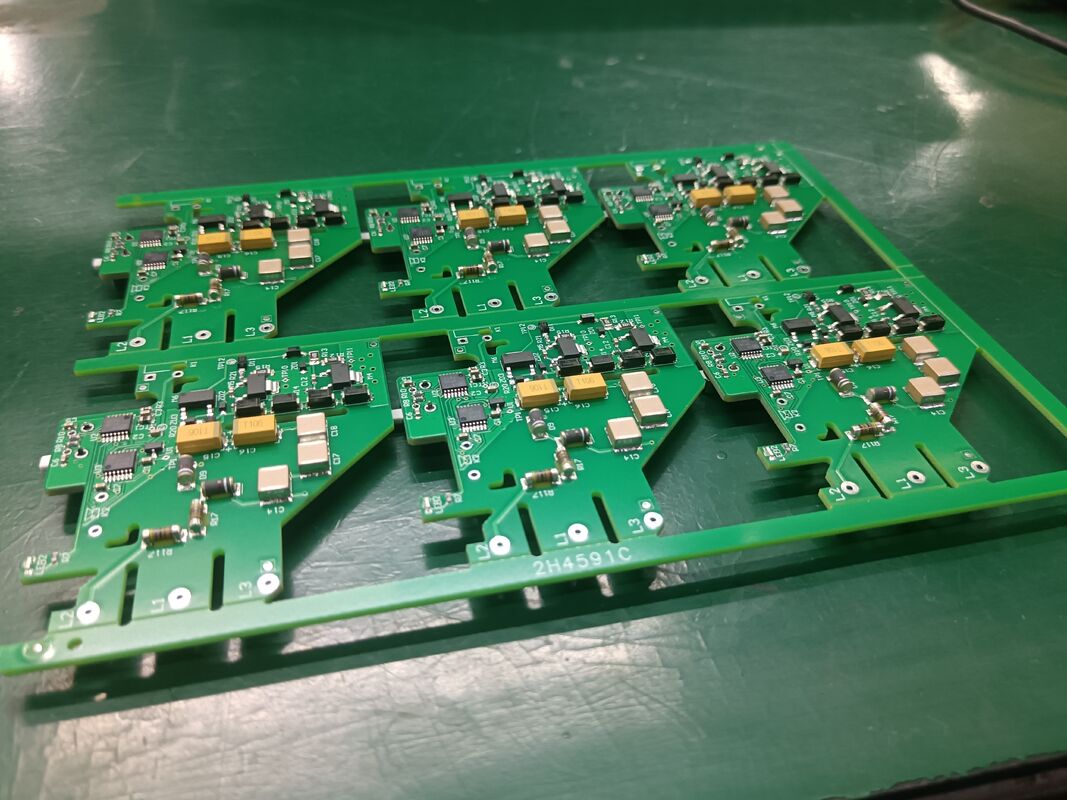

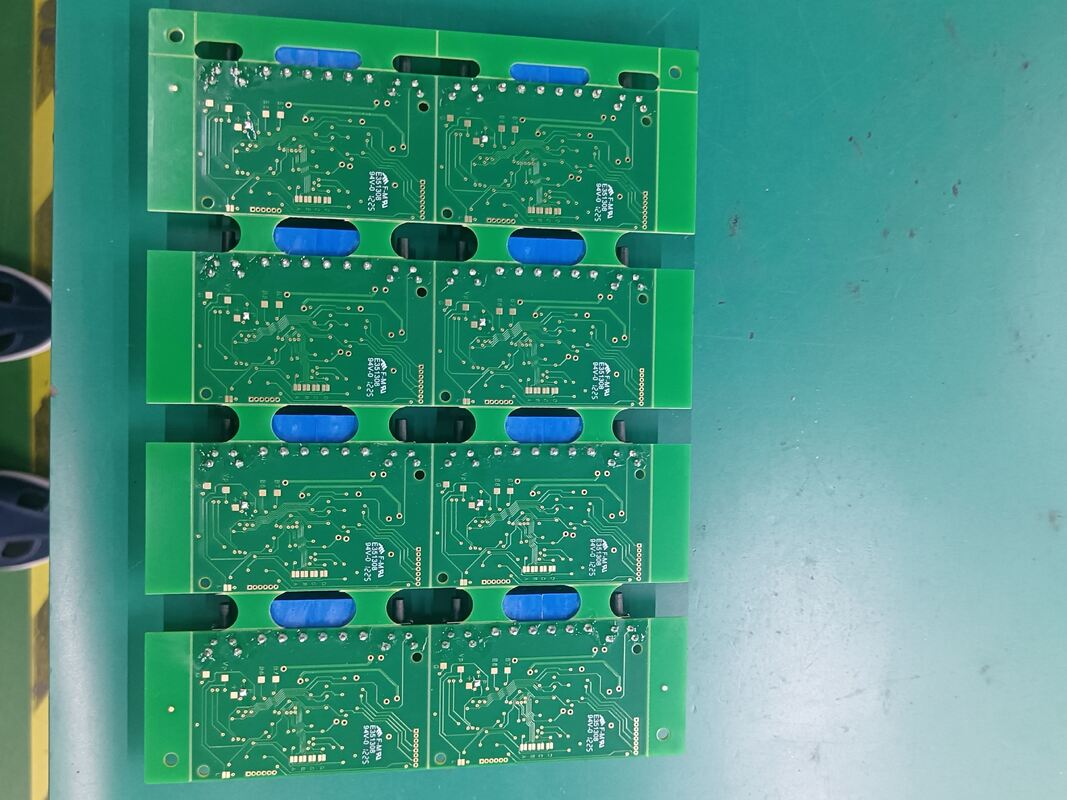

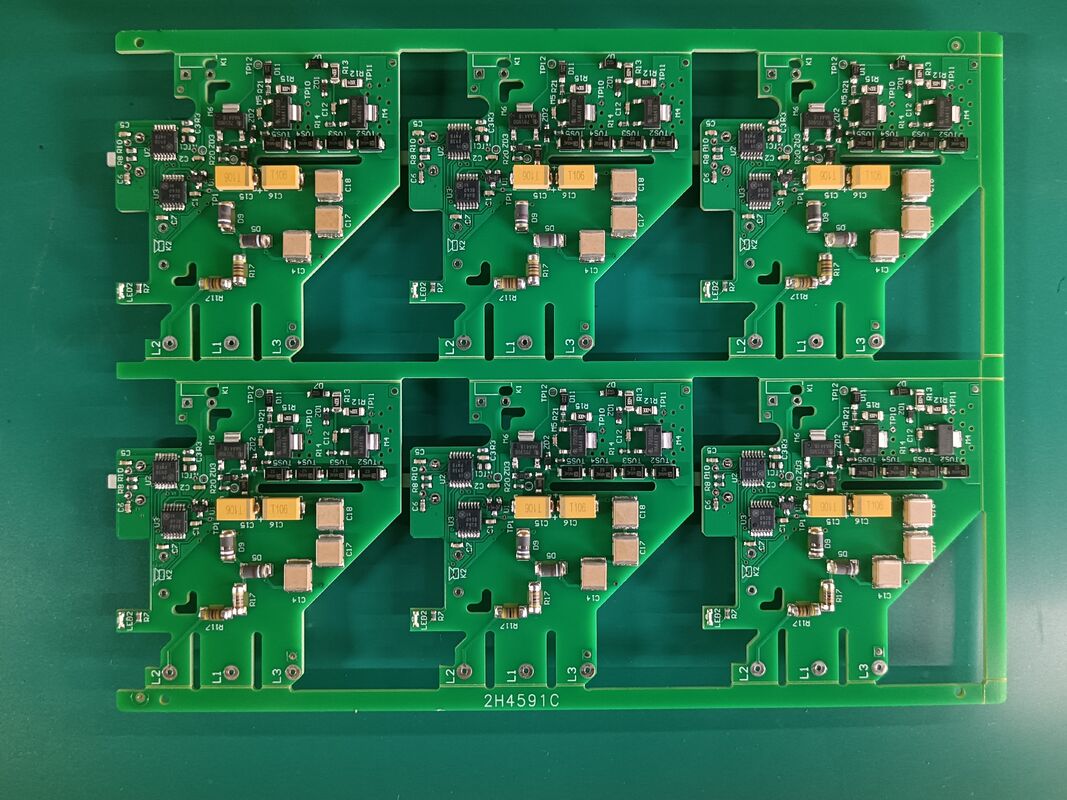

Name: 5G Communication RF PCBA Rogers 4350B 8-Layer Board Impedance Control 0.2mm Trace
Brand: Suntek Electronics Co., Ltd.
SKU: ZON-RF5G-8L
Price: 26.00 USD
Availability: InStock

Thuis > Producten > EMS-pcba >

5G Communication RF PCBA Rogers 4350B 8-Layer Board Impedance Control 0.2mm Trace

5G RF PCBA Rogers 4350B

8-Layer Impedance Control Board

0.2mm Trace High Frequency PCBA

Plaats van herkomst:

China/Cambodja

Merknaam:

Suntek

Certificering:

ISO9001, ISO13485, IATF16949, UL

Modelnummer:

ZON-RF5G-8L

Neem contact met ons op

Vraag een offerte

Productgegevens

Aantal lagen:

8 lagen (4-32 lagen beschikbaar)

Basismateriaal:

Rogers 4350B, FR4 hoge TG

Impedantietolerantie:

+/- 5%

Min Trace/Ruimte:

0.2mm/0.2mm

Oppervlakteafwerking:

ENIG, Onderdompelingsgoud, HASL

Borddikte:

1,0 mm-2,0 mm

Frequentiebereik:

tot 40GHz

Soldeer masker:

Groen, blauw, zwart, matzwart

Testen:

100% AOI, röntgenstraling, TDR-impedantietest, functionele test

Betaling en verzendvoorwaarden

Min. bestelaantal

1 stuk

Prijs

USD 8-45 / Piece

Verpakking Details

ESD-zak met vochtbarrièrezak, antistatisch schuim, omdoos

Levertijd

3-5 werkdagen voor prototype, 10-15 werkdagen voor batch

Betalingscondities

T/T,L/C,PayPal,Western Union

Levering vermogen

30000 vierkante meter per maand

Verwante producten

video

Conformal Coated Potting PCBA IP67 Waterproof Outdoor Control Board Protection Service

Vind de beste prijs

video

IC Programming Functional Test PCBA 100% ICT FCT Testing Service 32-Layer Board Assembly

Vind de beste prijs

video

IoT Smart Home PCBA Wi-Fi BLE Module ESP32 4-Layer Control Board Assembly Service

Vind de beste prijs

video

Industrial Control PCBA 4-Layer Board -40C to 85C Wide Temperature Assembly Service

Vind de beste prijs

Neem contact met ons op

0086-731-84874736

Contact opnemen

Productbeschrijving

5G Communication RF PCBA on Rogers 4350B This 8-layer RF PCBA is engineered for 5G base station, small cell and microwave backhaul hardware. Rogers 4350B laminates keep insertion loss low across the 3.5GHz and 28GHz bands, while controlled impedance routing holds signal integrity from the radio front end to the antenna port. Build specification Item Capability Layer count 8 layers, up to 32 layers Base material Rogers 4350B, high TG FR4, mixed stack-up Impedance control +/- 5
